Functional Features of the MECTEC TC Safe Operation Camera
Equipped with a 1.3-megapixel line-by-line scanning CMOS sensor for capturing smooth motion images without jagged edges.
Supports coaxial high-definition output with sharp and detailed visuals at 720p resolution.
Excellent low-light performance — 0.01 Lux @ (F1.2, AGC ON), and 0 Lux with IR illumination.
940nm single-pass IR filter ensures a pure black-and-white imaging mode.
High environmental adaptability featuring 4000V video lightning protection, anti-static circuit design, and a wide operating temperature range of -20°C to +70°C.
Wide-voltage design minimizes the impact of voltage fluctuations, ensuring stable operation.
Full-glass lens design optimized for tower crane operator cabins, providing superior image clarity and accurate viewing angles.
Integrated Taiwan Dingyuan infrared lamps deliver high brightness, excellent reliability, and extended lifespan.
Built-in AI chip algorithm allows for intelligent image processing and adjustable settings for optimal performance.
Full HD (Front + Inside)
Support 512 GB SD Card (Excluded)

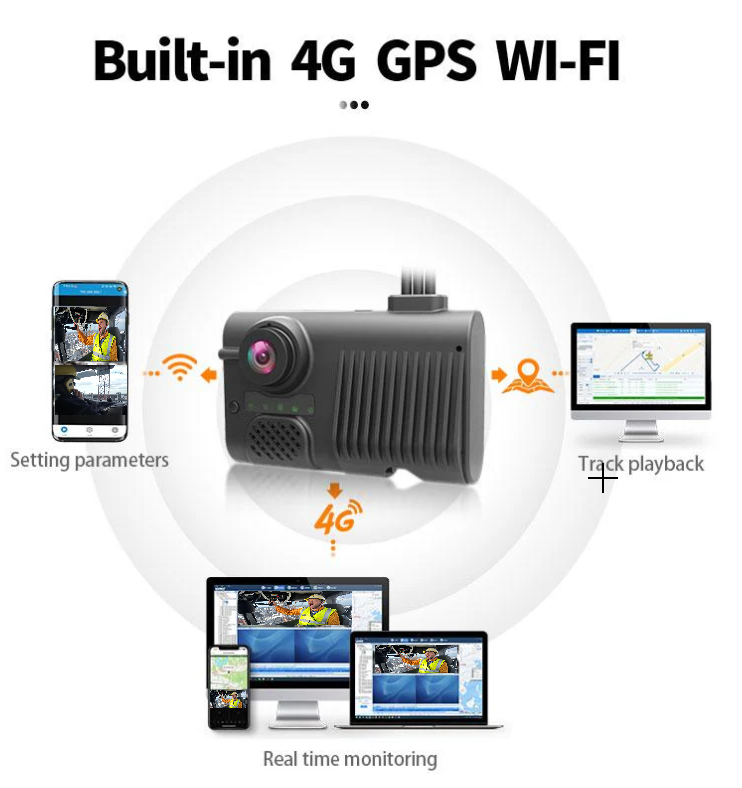

Enables centralized ground monitoring — multiple cameras can be accessed and controlled from one computer.
Particular | Description |
CPU | ARM Cortex A7 |
NPU | 0.6TOPs |
Sensor | 1/3” CMOS AHD 720P |
Standard | PAL |
Total pixels | 100W |
Minimum illumination | 0.01LUX |
Electronic shutter | PAL ：1/50 ～ 1/100,000s |
Signal to noise ratio | > 41dB |
White balance | Auto |
Switch between day and night | Black and white mode |
language | English plus any other language can be customised |
lens | 6MM,940 narrow band filter |
perspective | Horizontal 46° |
interface | M12 four core aviation interface |
Power supply | DC 12V±10%(support wide voltage（ 12-24V） |
Working temperature | -20℃～70℃ |
Working humidity | Relative humidity 90% |
Product size | Length 88MM* height 100MM* width40MM |
package | Accessories, package, certificates of conformity |
Built in algorithm | Drowsiness detection（DSM）algorithm |
Alarm interface | 1 IO alarm output（12V) |
Serial port | RS485（expandable） |
Video interface | AHD signal |
Speaker interface | Car speakers |
D-19 DMS Smart Camera for Tower Crane Safety
D-19 DMS MECTEC Smart Camera for Tower Crane Operator Safety
The MECTEC Smart Camera is an advanced AI-powered safety solution designed to enhance the operational safety and efficiency of tower crane operations.
In day-to-day work, crane operators often face fatigue or distractions — such as mobile phone usage or loss of focus — which can lead to accidents or operational delays. The MECTEC Smart Camera helps mitigate these risks through intelligent monitoring and real-time alerts.
Equipped with an AI-driven detection system, the camera identifies signs of operator distraction or fatigue, such as yawning, phone usage, or looking away from the operational area. When such behavior is detected, the system triggers an audible alarm to immediately alert the operator and simultaneously notifies the site P&M Manager for prompt intervention.
For projects operating multiple tower cranes across different locations, the system offers a centralized monitoring platform, enabling real-time supervision and direct communication with operators from a single control point.
By combining smart analytics with robust communication capability, the MECTEC Smart Camera significantly enhances operator awareness, reduces downtime, and promotes a safer, more disciplined work environment.
